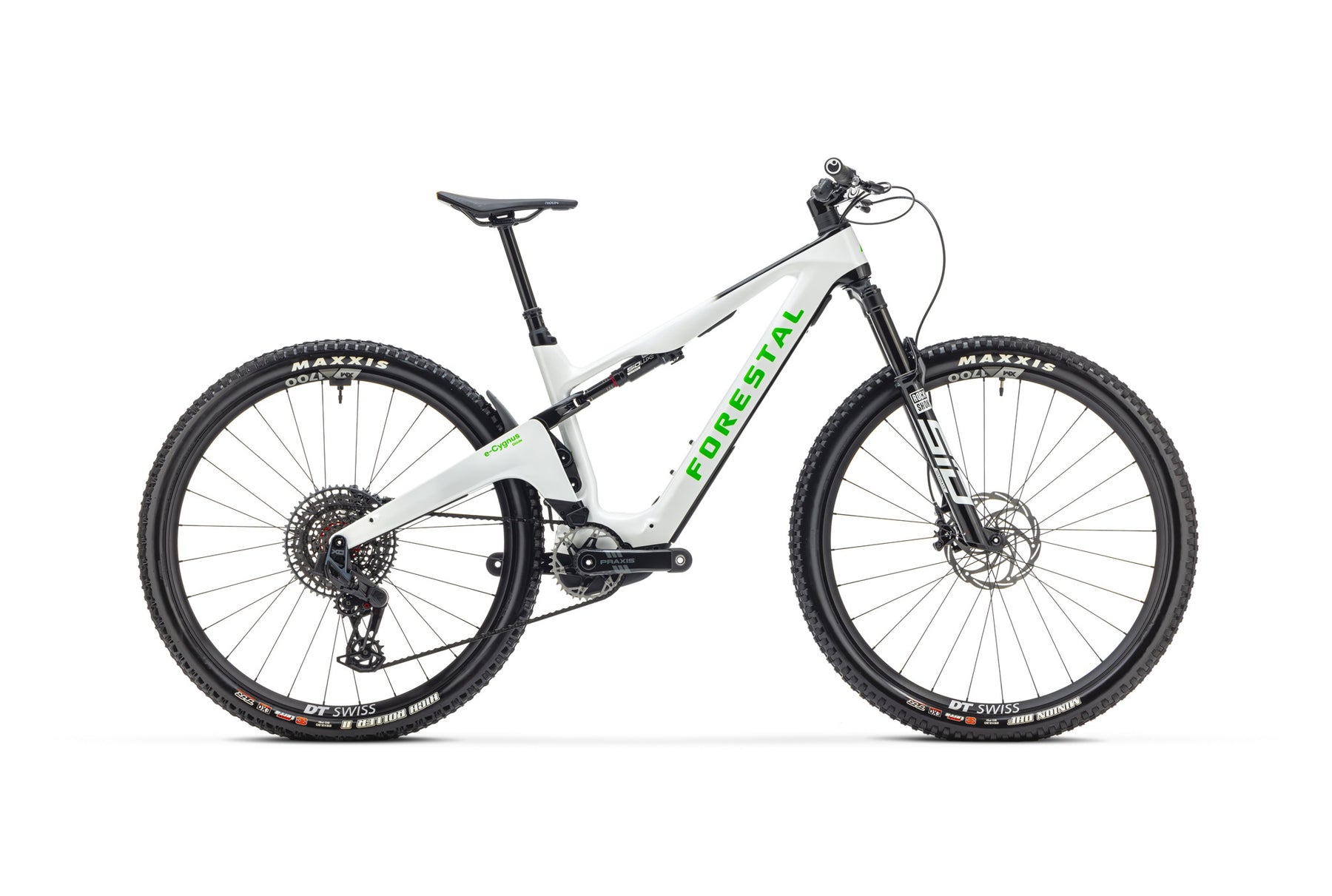

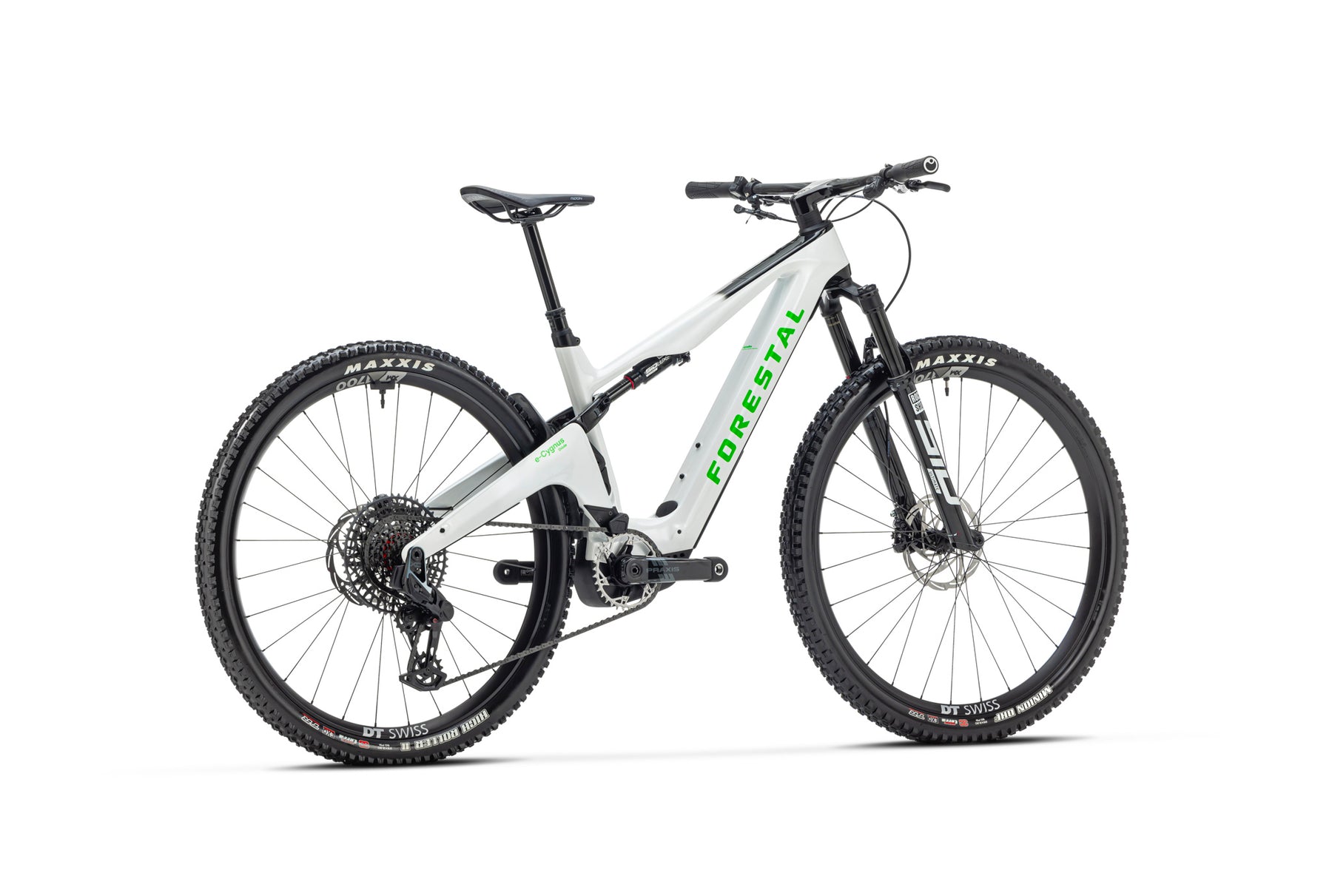

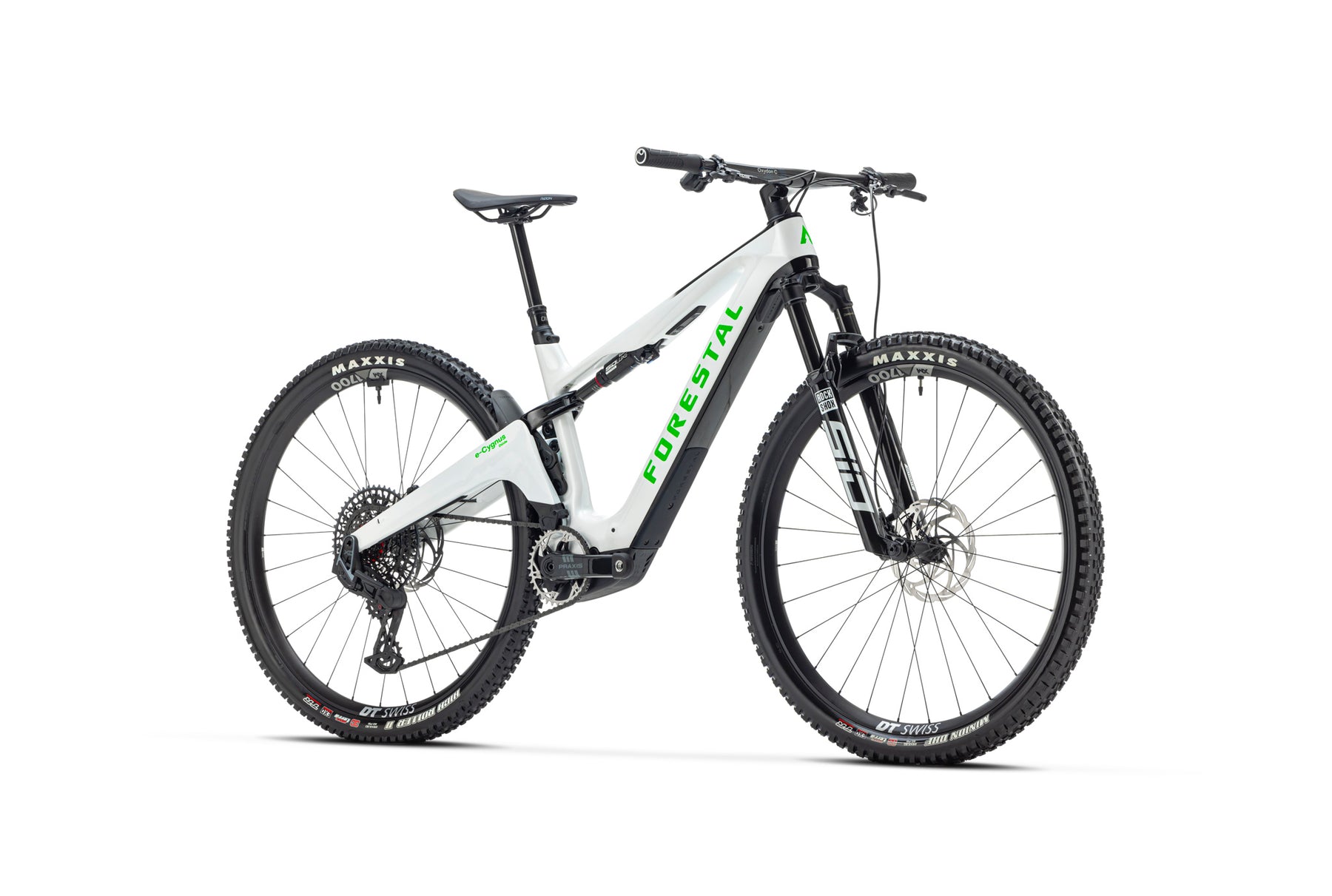

E-Cygnus
29” down country / carbon frame / integrated display 2.0 / Bosch SX
Beauty in pure shapes.
Engineered for performance.
Developed with innovation.
Redefining your enduro ride.
ESPECIFICACIONES
Año
2025
Tipo de bicicleta
Down-Country
Tamaño de la rueda
29"
Tija de sillin
OneUp V3
Dropper remote: BikeYoke Triggy X
Sillín
Fizik Terra Ridon
Neumáticos Delantero
Schwalbe Nobby Nic 2.40
Super Ground - Soft
Neumáticos Trasero
Schwalbe Wicked Will 2.40
Super Trail - Speedgrip
Puños/Cinta
Ergon GA20
Llantas
DT Swiss XM 1700 Alloy 29"
Potencia
Integrada con Forestal Oxydon C
Manillar
Forestal Oxydon C
780mm Integrado
Cadena
SRAM X0 Eagle T-Type
12 Speed | T-Type Flattop
Cassette
SRAM X0 T-Type XS-1295
10-52T | 12 Speed
Frenos Delanteros
Formula Cura 2 Glossy Black
180mm
Frenos Traseros
Formula Cura 2 Glossy Black
180mm
Manetas
SRAM AXS POD Ultimate Controller
Bielas
SRAM XX T-Type
Platos
-//-
Mandos
-//-
Cambio
SRAM X0 AXS T-Type
12 Speed | Hangerless Interface
Tipo de Freno
Disco
Horquilla
RockShox Sid Ultimate 29"
120mm
Cuadro
Forestal Alpha Box Carbon
Down-Country 29" DC120
Suspensión
RockShox
Bateria
Bosch SX 400Wh 36V / 2.0 Kg
Motor
Bosch SX 250W / 55 Nm / 160mm
Material
Carbono
Weight
-//-
TAMAÑO Y GEOMETRÍA
ALTURA / TAMAÑO |
|
|
Small |
Medium |
|
Large |
X-Large |
GEOMETRY |
||||
|---|---|---|---|---|
| DESCRIPTION | S/M | L | XL | |
| A – Top tube horizontal (mm) | 595 | 620 | 650 | |
| B – Reach (mm) | 445 | 470 | 495 | |
| C – Stack (mm) | 602 | 611 | 625 | |
| D – Seat tube length (mm) | 415 | 455 | 500 | |
| E – Chainstay horizontal (mm) | 448 | 448 | 448 | |
| F – Head tube angle (°) | 67 | 67 | 67 | |
| G – Seat tube angle (°) | 76 | 76 | 75,5 | |
| H – BB drop (mm) | -36 | -36 | -36 | |
| I – Wheel base (mm) | 1168 | 1197 | 1241 | |
| J – Head tube length (mm) | 100 | 110 | 125 | |
| K – BB height (mm) | 334 | 334 | 334 | |
| L – Fork offset (mm) | 44 | 44 | 44 | |
 |
||||
